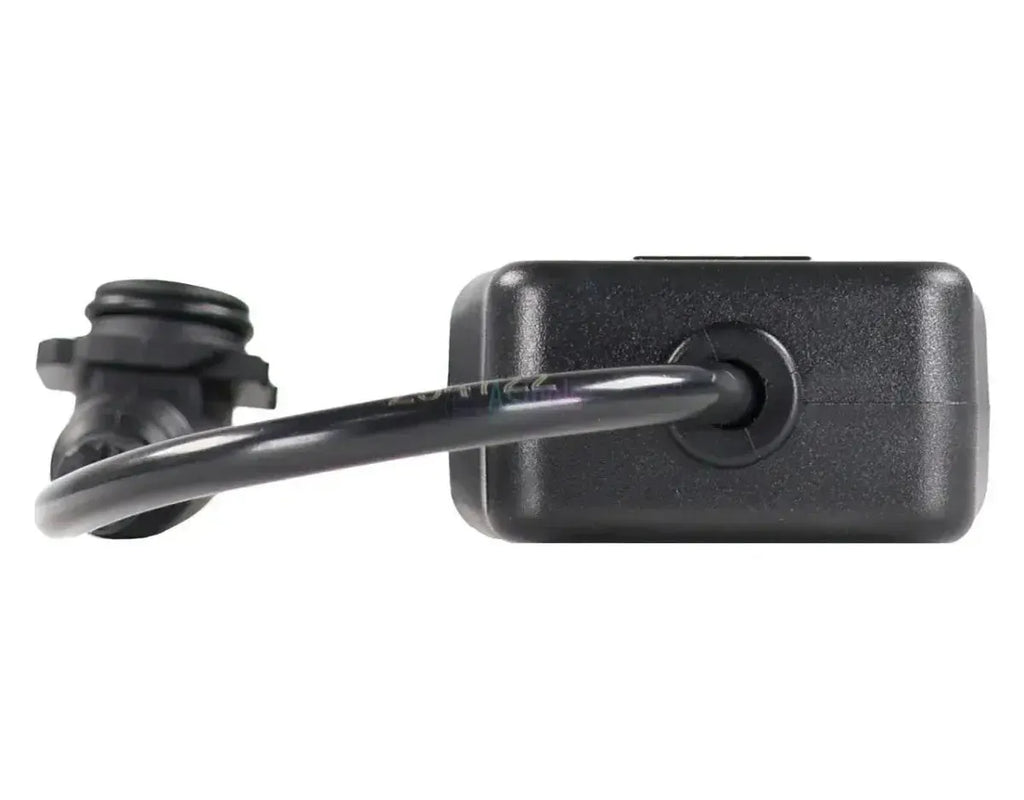

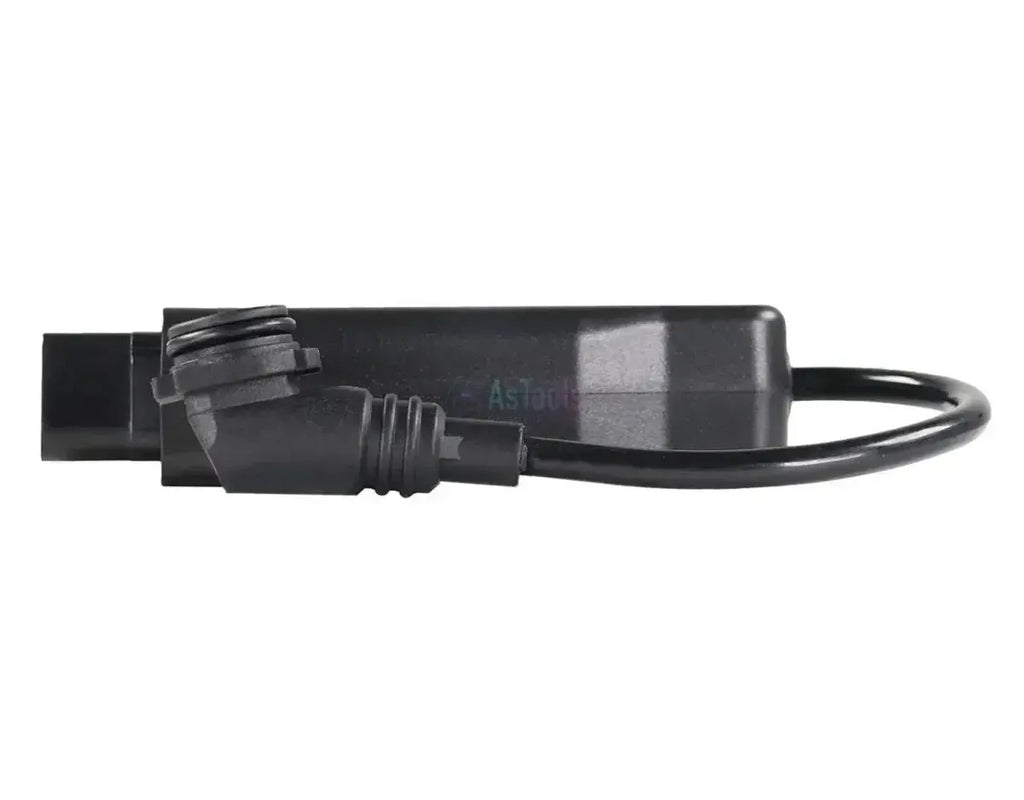

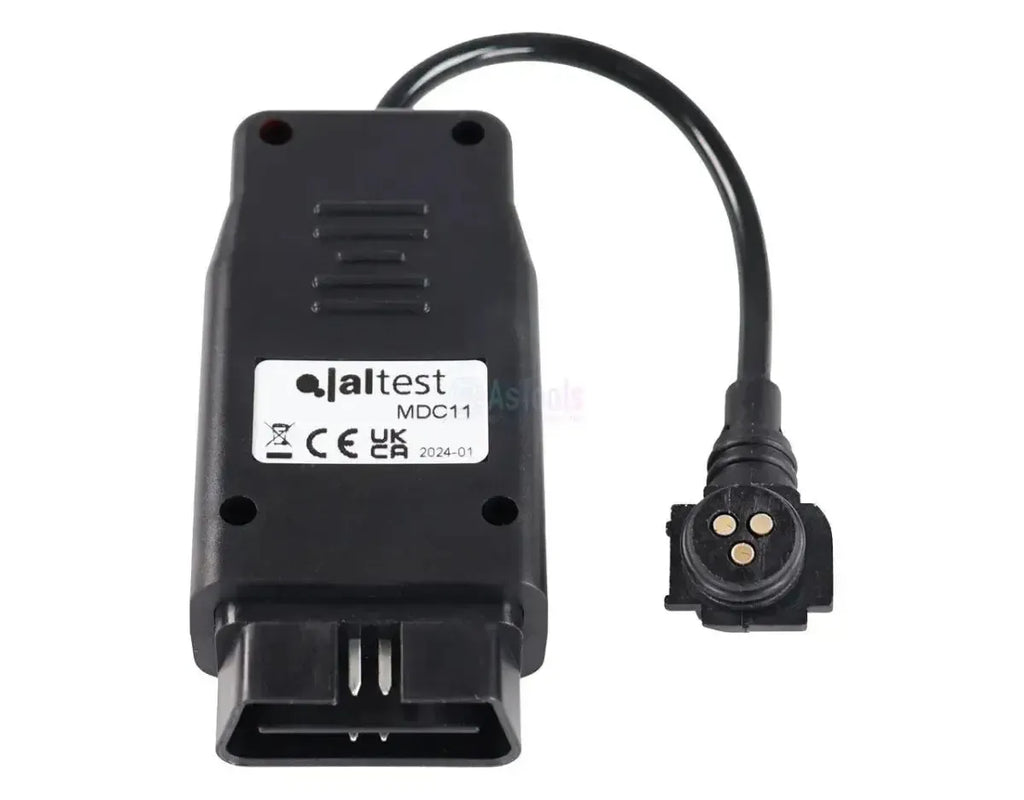

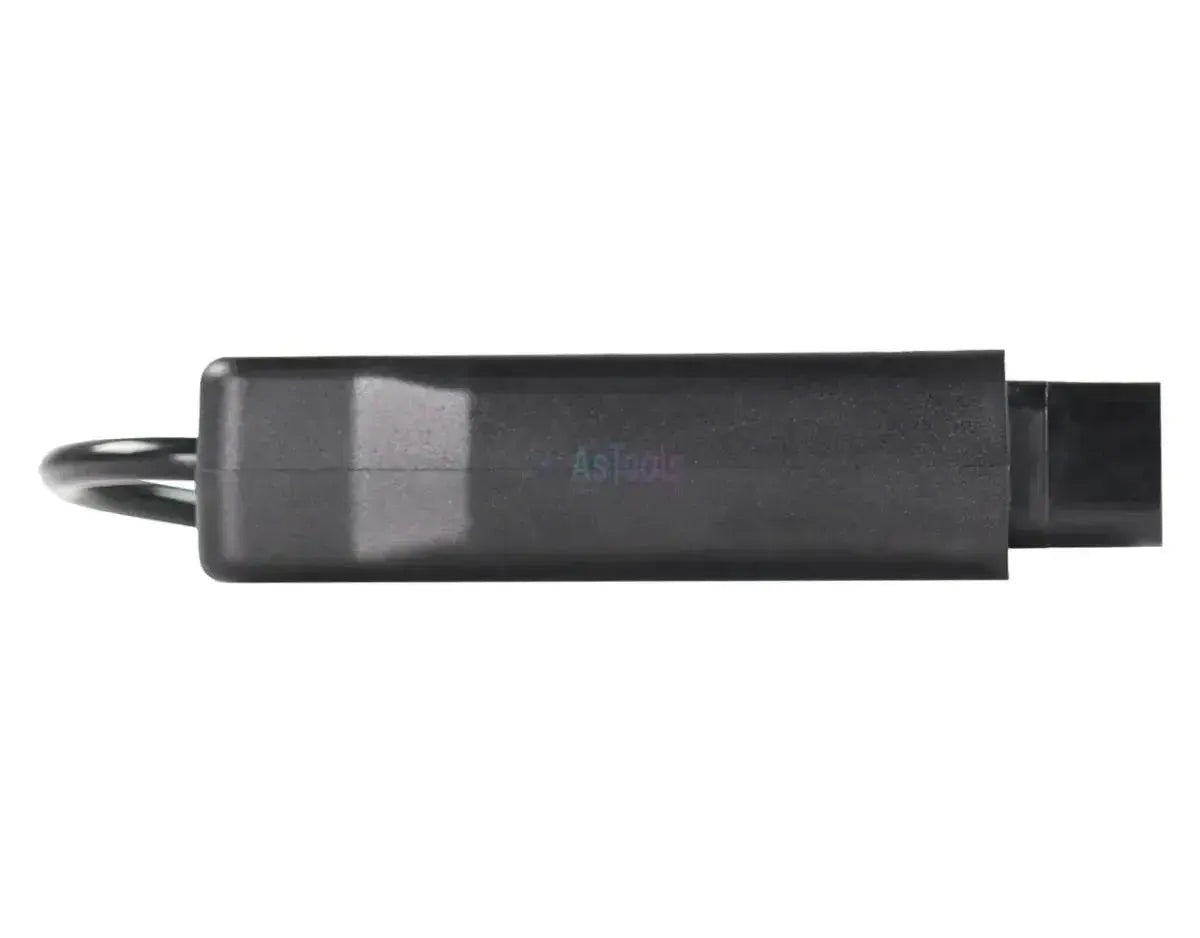

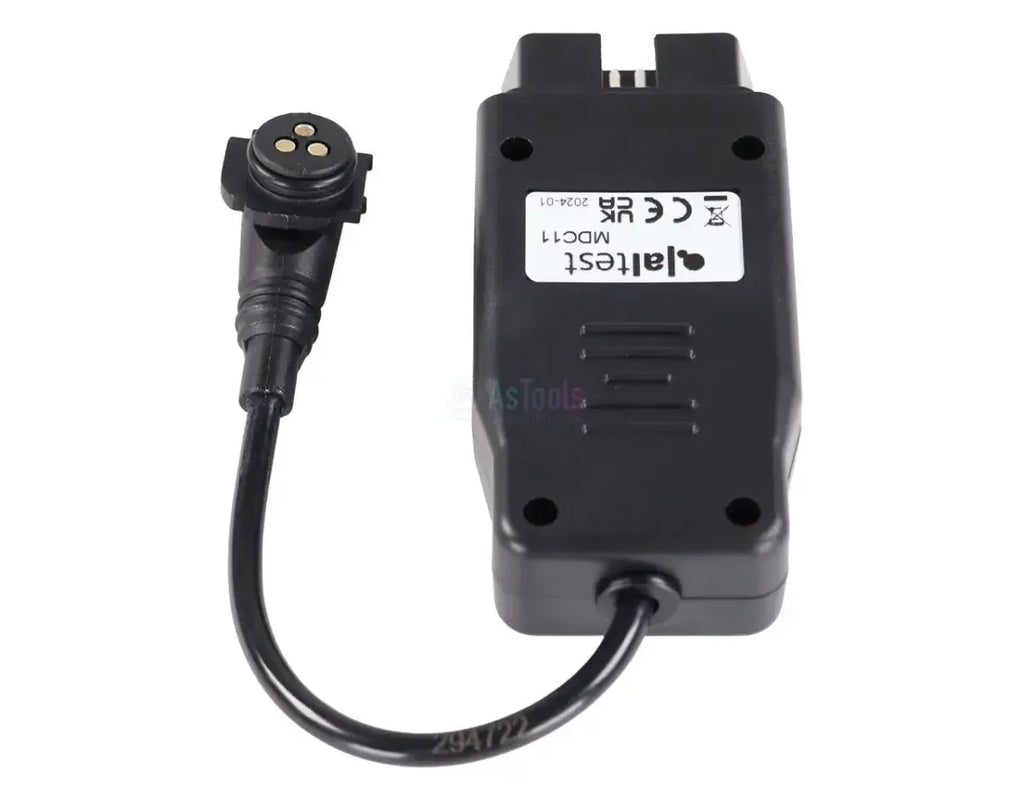

Jaltest (MDC11) | Knorr-Bremse 3-pin BWS – 16-pin OBD2 Adapter cable | Commercial vehicle

The Jaltest MDC11 is an adapter cable designed for diagnosing brake wear sensors (BWS) in commercial vehicles. This cable provides a direct connection between the specific Knorr-Bremse 3-pin BWS connector on the vehicle side and a standard 16-pin OBD2 connector on the diagnostic tool side. The cable is designed for use with Knorr-Bremse braking systems.

This diagnostic cable is specifically designed for use with the Jaltest ETM (Electronic Test Module) . It allows a technician to perform targeted measurements and functional checks on the brake pad wear sensors . By connecting directly to the sensor, signals and sensor status can be accurately analyzed, independently of other vehicle systems.

Application and functionality:

The MDC11 cable provides specific diagnostic capabilities for Knorr-Bremse brake wear sensors.

• Brake wear sensor diagnosis: Enables a direct connection between the Jaltest ETM module and the Knorr-Bremse BWS (Brake Wear Sensor) to check signals and correct operation.
• System Compatibility: Designed for the 3-pin connector used on Knorr-Bremse brake wear sensors in various commercial vehicles.

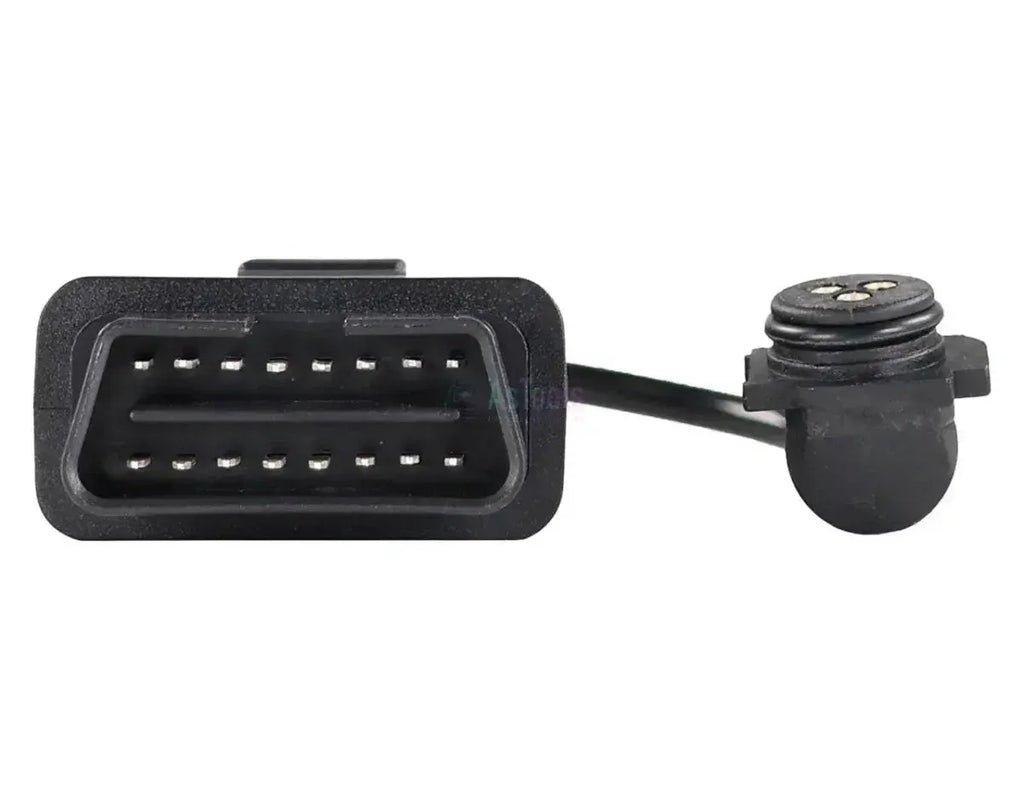

• Connection: Translates the 3-pin sensor connector to a universal 16-pin OBD2 connector for compatibility with the Jaltest diagnostic interface.

Compatible vehicles and applications:

This adapter cable is not specific to one vehicle make or model, but has been developed for commercial vehicles (such as trucks, trailers and buses) that are equipped with a Knorr-Bremse braking system and use the corresponding 3-pin BWS connector for the brake wear sensor.

The cable is compatible with systems from:

• DAF
• Iveco
• MAN
• Mercedes-Benz
• Renault
• Scania
• Volvo

Important: Before purchasing this product, always check your vehicle's connection. This may vary depending on the model and year of manufacture.

Package contents:

• 1x Jaltest (MDC11) | Knorr-Bremse 3-pin BWS – 16-pin OBD2 Adapter cable | Commercial vehicle

Technical specifications:
